Lesson 14: Background

Surface Pressures Estimation from Synoptic Cloud Patterns

Idealized cloud patterns during the life cycle of an extratropical cyclone.

Comments

Cloud Pattern

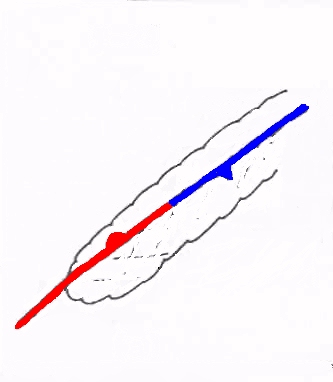

Stationary Front

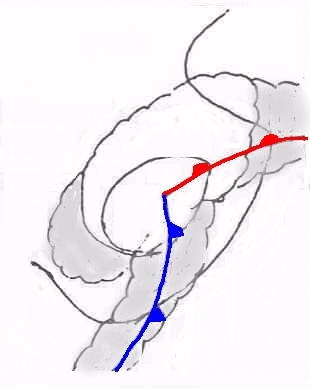

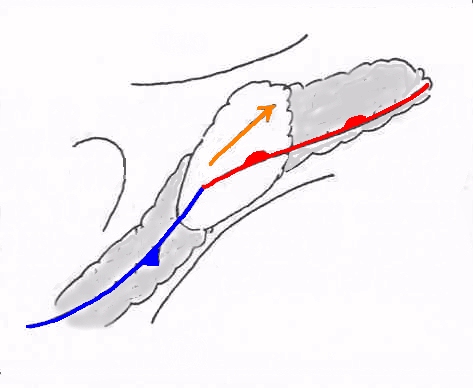

Initial development

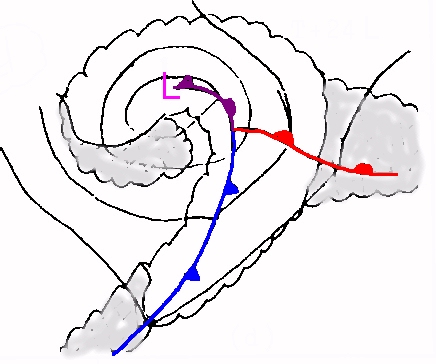

Dry slot forming

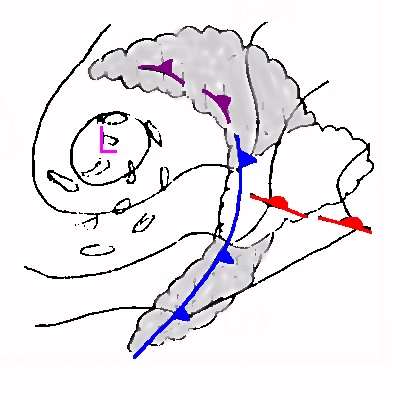

Occluded front forms

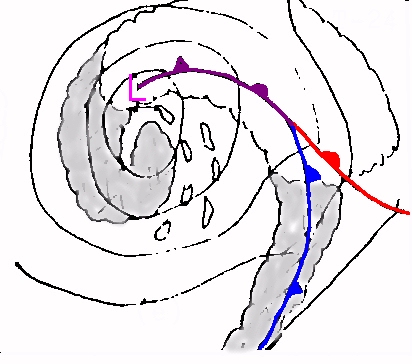

Upper level low cut off from the surface.
